VPM 560

Product Description

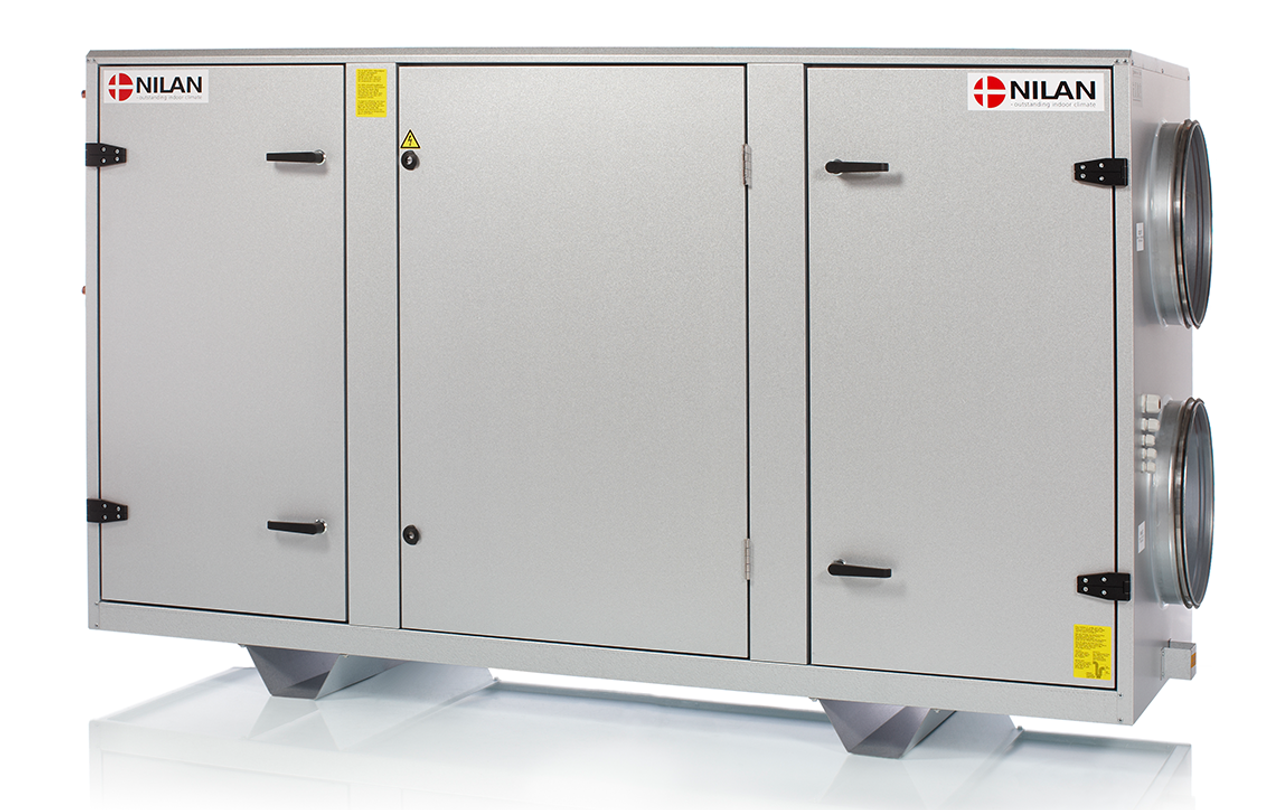

VPM 120-560 are compact heat recovery units with a cooling option. The units come complete with filters and heat pipe. Water or electric heating elements can be installed in the unit. The casings are manufactured in aluzinc and prepared for outdoor installation with the purchase of a top cover.
 VPM 120-560 is available as standard with a CTS602 control unit with its own operating panel and option of Modbus communication via RS485 connection. The Modbus protocol allows the setting and reading of a number of parameters.

CTS602 is the simple standard control unit while CTS6000 is the
professional and configurable control unit solution.
 VPM 120-560 comprises the following:

•   Heat pump for active heat recovery for fresh air heating or cooling (refrigerant R407C).
•   Passive heat recovery with heat pipe (CO 2 refrigerant).
•   Two 4-stage low-energy EC fans.
•   Integral filters ISO ePM10 >60% (M5) (extract air) and       ISO ePM1 60% (F7) (fresh air).
•   Operation takes place via the CTS 602 control panel with display and programmable functions.
